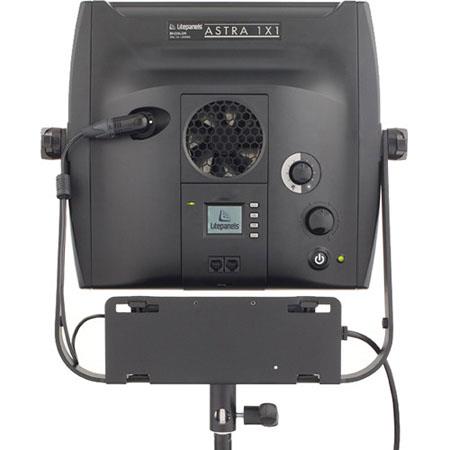

The ASTRA 1x1 Bi-Color panel builds on the legacy of the original 1x1 fixture, which revolutionized the lighting industry. This innovative daylight to tungsten tunable color model was years in the making, with every design element of this next generation panel being meticulously crafted. Following the Litepanels tradition of a one square foot form factor, the ASTRA series is designed with select premium quality, high CRI, surface mount LEDs and paired with custom designed TIR optics.

• Variable Tungsten to Daylight Balance
• 4x Power of Original 1x1
• Dual Cooling Modes
• Optional DMX Module
• 100-240 VAC with Included AC Adapter
• 13-24 VDC with Optional Battery
• Optional Gold Mount and V-Mount Plates
• TIR Optics, High CRI

These tightly binned LEDs and fine-tuned optics provide the ASTRA 1x1 with superior color reproduction and a light output that is up to four times brighter than traditional LED panels. This higher intensity results in a longer throw and illuminates a wider area, allowing the panel to compete with strong exterior light sources or illuminate a large area effectively with just a single fixture.

Output is 4x brighter than the original 1x1 LED panel
• High performance LEDs with custom paired optics
• Higher intensity = Longer throw = Wider effective beam spread

Superior color reproduction
• High color rendition (CRI)
• Adjustable (daylight to tungsten), accurate color temperatures

Efficient thermal management with user selectable dual cooling mode
• Completely silent passive cooling mode
• Ultra-quiet active cooling mode with double light output

Ultra-smooth dimming from 100% to 0
• No noticeable color shift throughout the entire range
• Flicker-free at any frame rate or shutter angle

Flexible, modular concept
• Field replaceable fan module and external power supply

Modern fixture design
• Easily identifiable and ergonomic manual controls for dimming, color and power status
• Aluminum I-beam core construction to provide maximum durability and superior thermal management
• Aluminum accessory mounting points and lens/filter rails
• End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
• Durable, industry standard 3-pin XLR locking power connector

Custom curved yoke design
• Wide, unobstructed tilt range
• Yoke mounted power supply
• Removable TVMP connector for flexible mounting options
• Two alternate 1/4-20 mounting points
