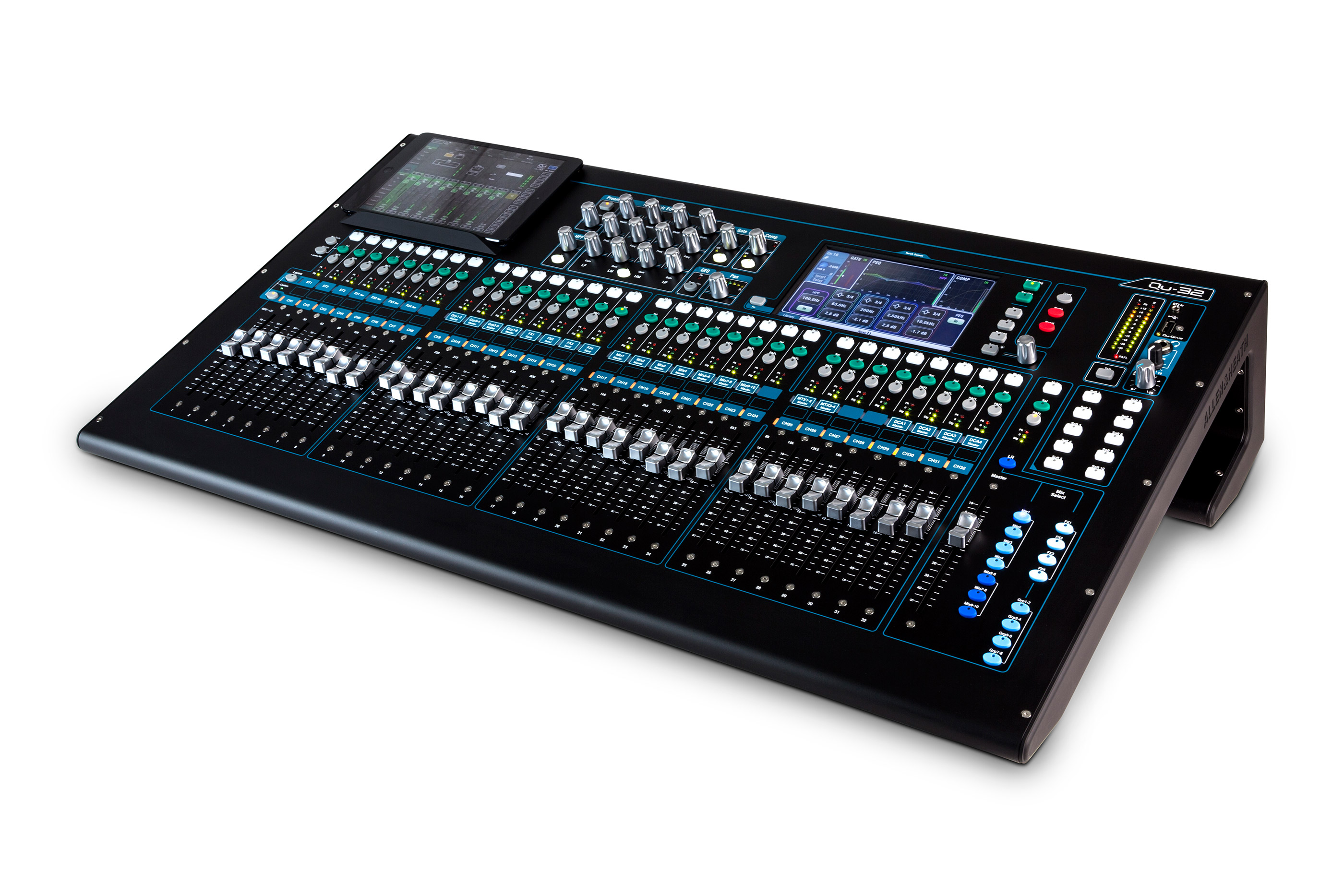

Qu-32 Digital Mixer
SKU: Qu-32
Allen & Heath

Qu-32 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience.

Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-32 has the power and pedigree to deliver class-leading audio performance. Hot new features include Automatic Mic Mixing and Spectrogram for feedback-hunting, plus upgraded, high contrast metallic finish controls.

Feature Summary

  • 32 Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQTM Preamps
  • 3 Stereo Inputs (TRS)
  • 24 Mix Outputs (XLR)
  • 4 Stereo Groups (switchable to Mix mode)
  • Up to 11 Monitor Mixes (4 mono + 7 stereo)
  • 2 Stereo Matrix Outs
  • 4 FX Engines
  • 4 dedicated FX Sends / Returns
  • 4 Mute Groups
  • 4 DCA Groups
  • AES Digital Out
  • 32×32 USB Audio Interface
  • dSNAKETM Remote Audio Port
  • 33 Motor Faders
  • 7” Touchscreen
  • 10 Soft Keys
  • rim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • Channel Ducker on all inputs
  • iLive FX Library
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid feedback elimination and room acoustics
  • Automatic Mic Mixer
  • Qu-Drive Direct Multitrack Recording / Playback on USB drives
  • DAW MIDI Control
  • Qu-Pad iPad App
  • Qu-You iPhone / Android personal monitoring app
  • Compatible with ME Personal Mixing System
