QSC TouchMix-16 16 Channel Digital Audio Mixer
SKU: qsctm16
QSC

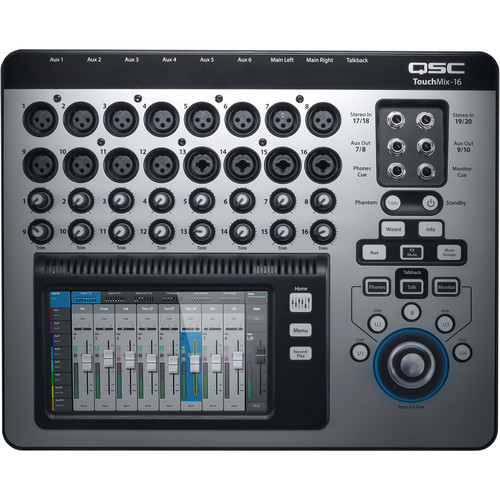

QSC TouchMix-16 Compact Digital Mixer with Touchscreen



The TouchMix-16 Compact Digital Mixer with Touchscreen from QSC is a 20-input digital mixer that features 16 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-16's DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.

The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.

  • 20 Full Function Inputs: 12 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track

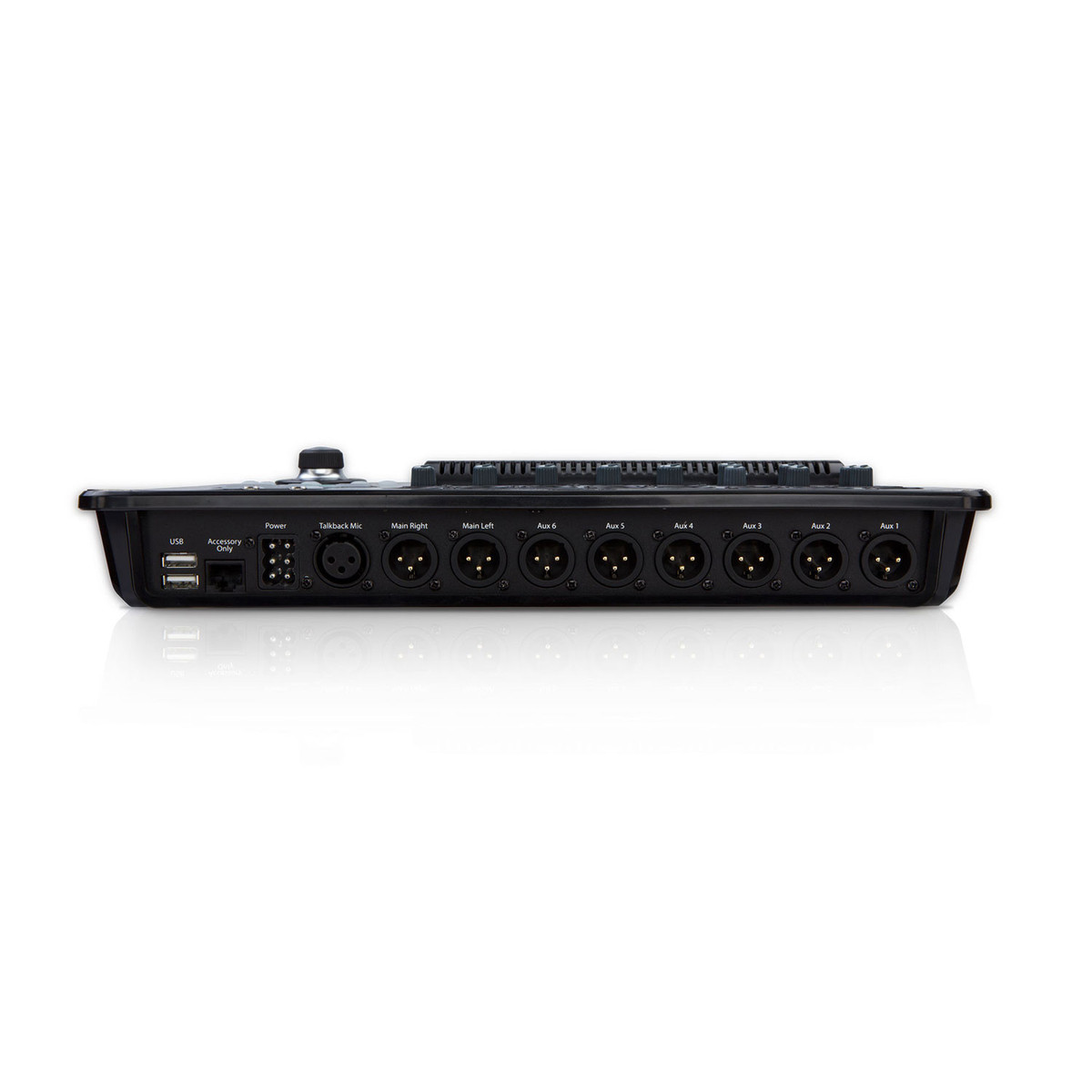

  • Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
  • TRS Aux outs drive wired In Ear Monitors (IEM) directly
  • 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
  • Gate and compressor on all input channels
  • 4 stereo DSP effects plus a pitch corrector
  • 1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs
  • 8 DCA and 8 Mute groups
  • Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation
  • Wizards, info and preset libraries assist you with channel setup, effects selection, and more
  • Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair
  • Remote control via mobile devices. Wi-Fi interface included
