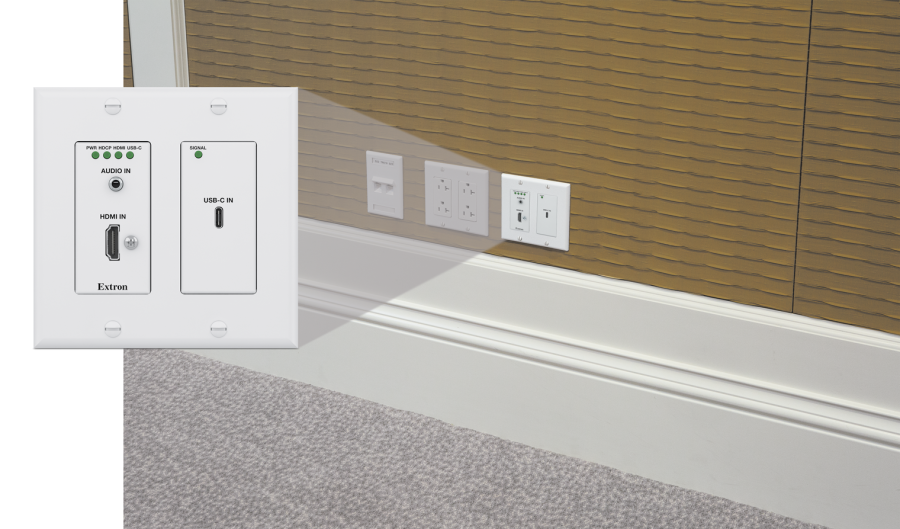

ProAVNews: Extron DTP3 Wallplate Transmitter for USB-C and HDMI

Extron is excited to introduce the DTP3 T 212 D, a two-gang decorator-style transmitter that sends USB-C®, HDMI, audio, and control up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 @ 4:4:4 and is HDCP 2.3 compliant. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. This handy wallplate transmitter includes many of the same integrator-friendly features you expect with a DTP family member, such as EDID Minder®, auto-switching between inputs, and bidirectional RS-232 pass-through for remote AV device control. A separate analog input enables audio embedding alongside the video signal. Also, it shares remote power with a DTP3-enabled product over the same twisted pair connection for streamlined installation. Packed with features and capabilities in a convenient wall-mountable design, the DTP3 T 212 D provides discreet placement of USB-C and HDMI input connections at walls, lecterns, conference tables, or wherever needed in a professional environment.

Key Features
  • Transmits USB-C® video, HDMI, audio, and control up to 330' (100 m) over a shielded CAT 6A cable
  • Supports computer and video resolutions up to 4K/60 @ 4:4:4
  • Analog stereo audio embedding
  • Auto-switching between inputs
  • Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats
  • DTP3 output is compatible with HDBaseT®-enabled devices
  • HDCP 2.3 compliant
  • Remote power capability with DTP3 products
  • EDID Minder® automatically manages EDID communication between connected devices
  • Bidirectional RS-232 pass-through for AV device control
  • Mounts in an included two-gang decorator-style wallplate

To learn more about these products, get a free quote or to schedule a demo send an email to This email address is being protected from spambots. You need JavaScript enabled to view it. or call 800.554.5539
