ProAVNews: Extron New Compact Fiber Optic Scaling Receiver Modules

1219 Hits

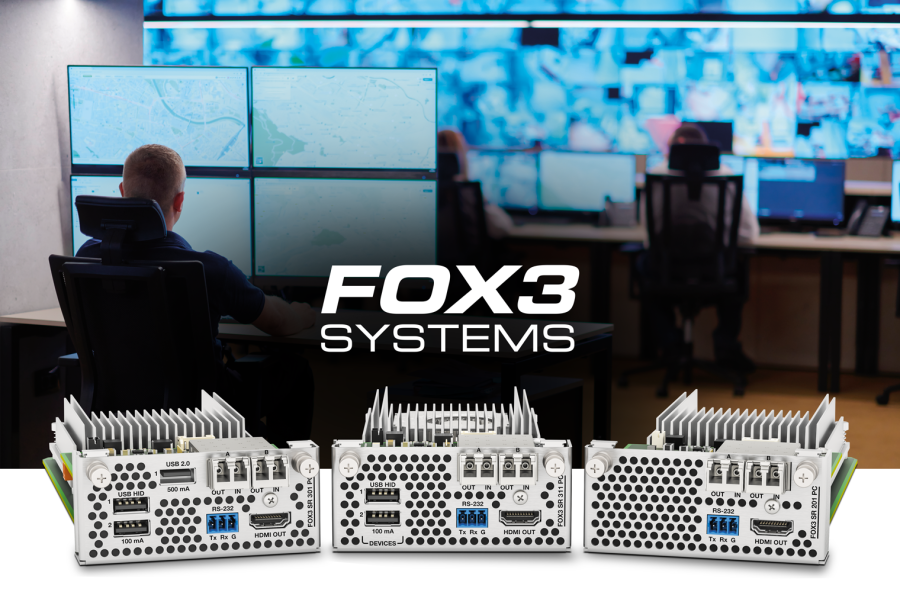

Extron expanded their powerful, space-saving FOX3 PowerCage® platform with three new single-slot fiber optic scaling receiver modules. Designed specifically for the PowerCage 411 enclosure, the FOX3 SR 311 PC, FOX3 SR 301 PC, and FOX3 SR 201 PC are compact new modules that provide long-haul extension of HDCP-compliant HDMI video with embedded audio and RS-232 control, as well as optional USB or USB HID signals. Engineered for exceptional high resolution image performance, they use Extron all-digital technology to deliver perfect pixel-for-pixel, uncompressed transmission of images up to 4K/60 @ 4:4:4 over two fibers or mathematically lossless 4K/60 @ 4:4:4 over one fiber. Designed specifically for AV and KVM systems, these new fiber optic scaling receivers also include many integrator-friendly features such as Key Minder® and real-time system monitoring.

Key Features
  • Receives fiber optic signals from FOX3 Series transmitters and provides scaled HDMI video with embedded audio and RS-232 control (FOX3 SR 201 PC) as well as USB (FOX3 SR 301 PC) or USB HID (FOX3 SR 311 PC)
  • High performance scaler provides selectable output resolutions up to 4096x2160 at 60 Hz with a 4:4:4 chroma sampling
  • Supports mathematically lossless 4K video up to 4096x2160 at 60 Hz with a 4:4:4 chroma sampling over one fiber
  • Supports uncompressed 4K video up to 4096x2160 at 60 Hz with a 4:4:4 chroma sampling over two fibers
  • Supported HDMI 2.0 specification features include data rates up to 18 Gbps and Deep Color up to 12-bit
  • HDCP 2.3 compliant

To learn more about these products, get a free quote or to schedule a demo send an email to This email address is being protected from spambots. You need JavaScript enabled to view it. or call 800.554.5539
