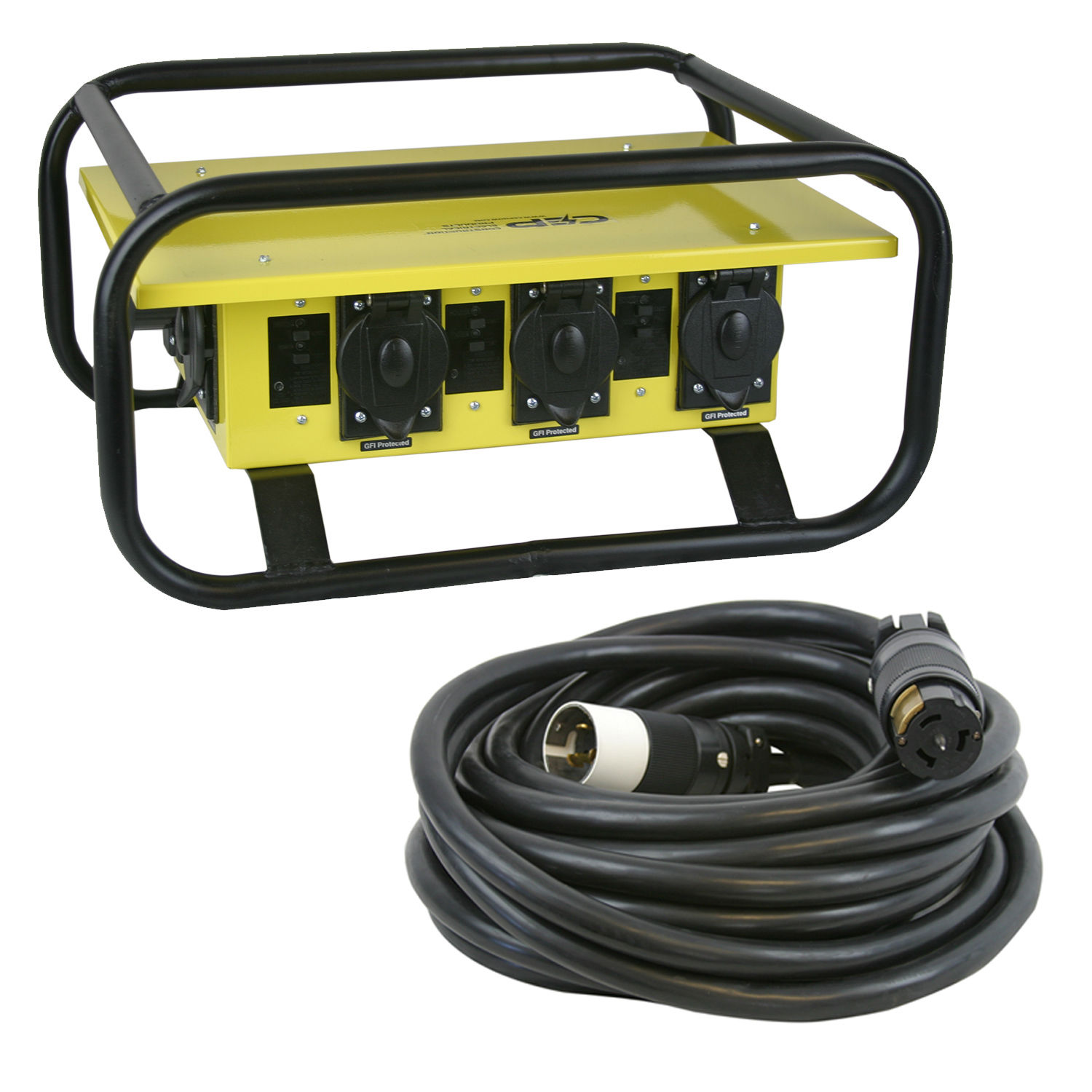

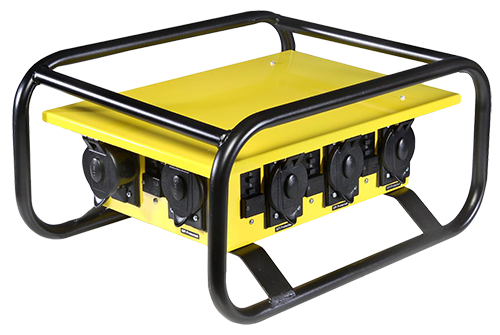

CEP 8706GU 50 Amp Spider Box PD
SKU: 8706GU

50 Amp Power Distro Spider Box

Product Description

CEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL 1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.

  • Input- 50A 125/250V (CS6375)
  • Output- 50A 125/250V (CS6369) Feedthrough
  • 6 – 20A 125V (5-20R) U-Ground 1 – 30A (L6-30R)
  • Rugged

Additional Information

Weight 34.00 lbs
Dimensions 21 x 14.5 x 11 in
Outlet Description Rugged 6 Outlet U-Ground
Outlet Type U-Ground
Size 21 x 14.5 x 11 in. LxWxH
GFI Specs 4-6 milliamp trip level,
Construction Powder Coated Steel
AMPS 50 Amps
Receptacles 6ea. 5-20R 1 ea. L6-30R
Power Inlet 50A 125/250V CS6375H
Feed-Through Yes
3R Rated Yes
Power Outlet 50A 125/250V CS6369H
Volts 125/250V
